Sorting

Reliable machines to sort the product to size with a high capacity.
Sort by square size or camera system with reading option.

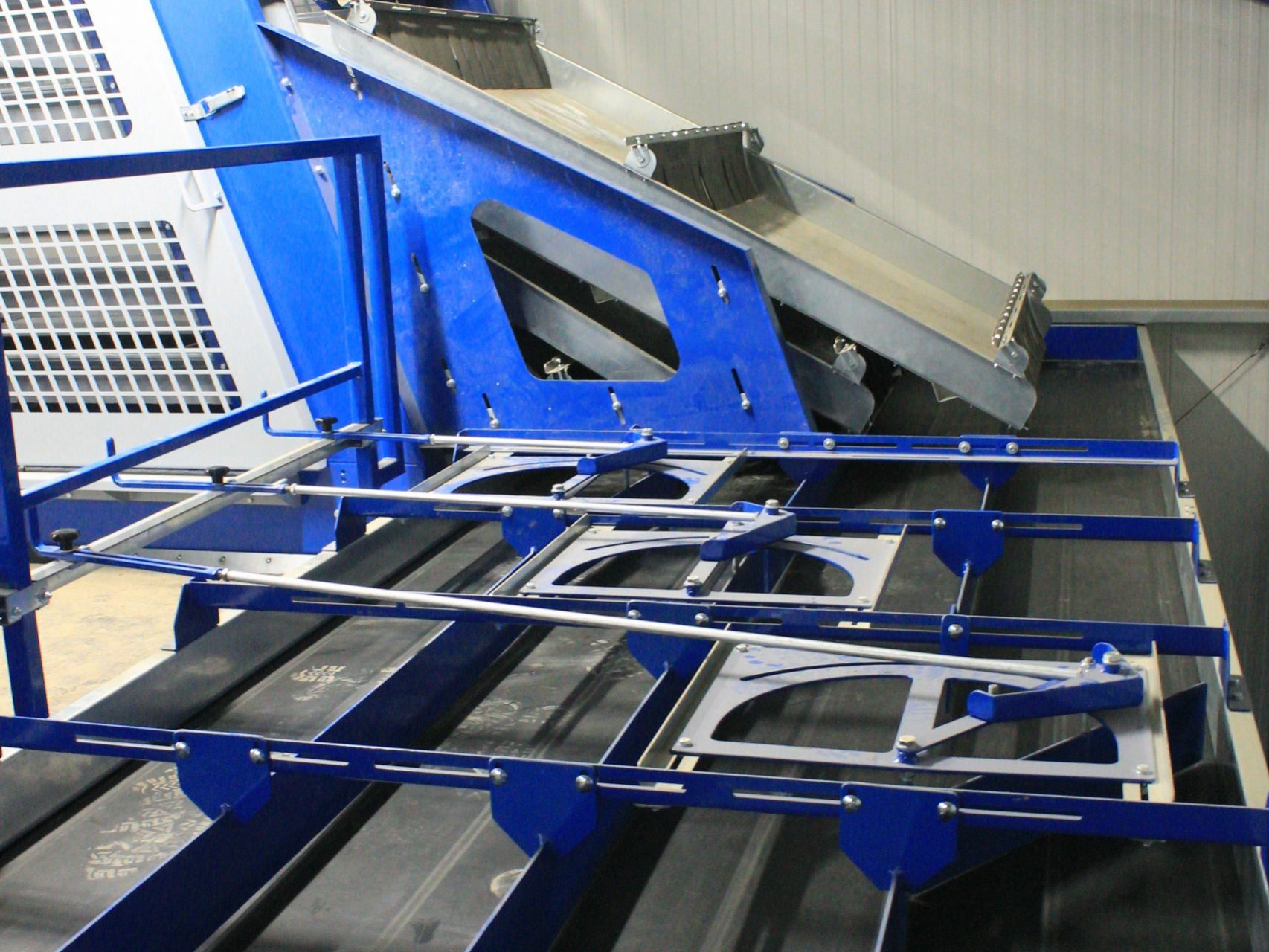

JW 1300
SORTING MACHINE

Sorting machine for highly accurate
sorting:the decks not only shake but
also make an upwards movement.The
sieving decks are placed diagonally
below each otherto achieve effective
filling across the entire sorting deck.

  • Sorting at a maximum capacity of 25 tonnes/hour with even dividing across the 5 decks
  • Adjustable shaking and stopping timeensures accurate sorting
  • Adjustable stroke frequency
  • Sieving decks mounted in Rosta componentsto achieve the right balance in the machine
  • Sieves can be changed from one side
  • Settings are very easy to adjust and saveusing the touch screen

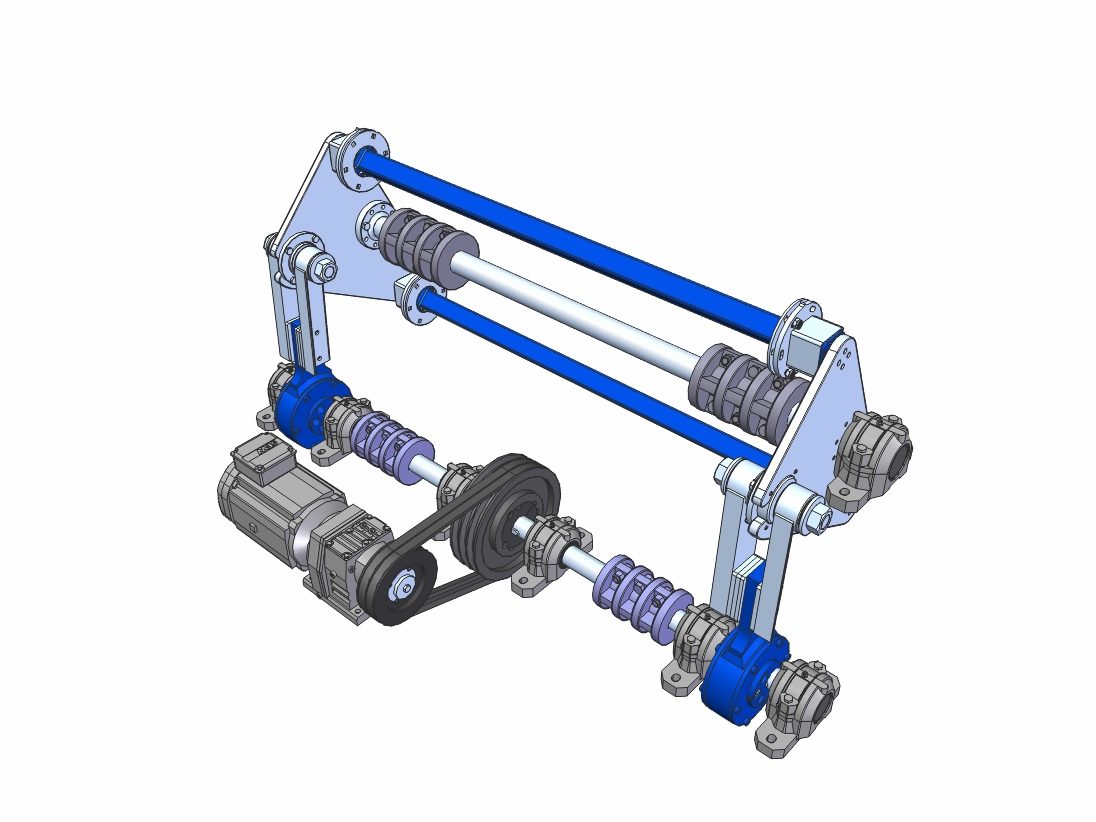

  • Heavy-duty crankshaft systemwith 2connecting rods for proper power distribution
    to the sieving decks
  • Option: pneumatic clamping system

PU ROLLER SET

The Wevano PU Roller Set Machine can
be used for soilremoval, spreading and
sorting.

  • Variety ofroller coverings: soft PU spiralrollers, PU diabolo sorting rollers and softrubber pintle rollers
  • Stainless steel or steel
  • Suitable for a variety ofwidths and lengths
  • Option: stepless sorting size adjustment

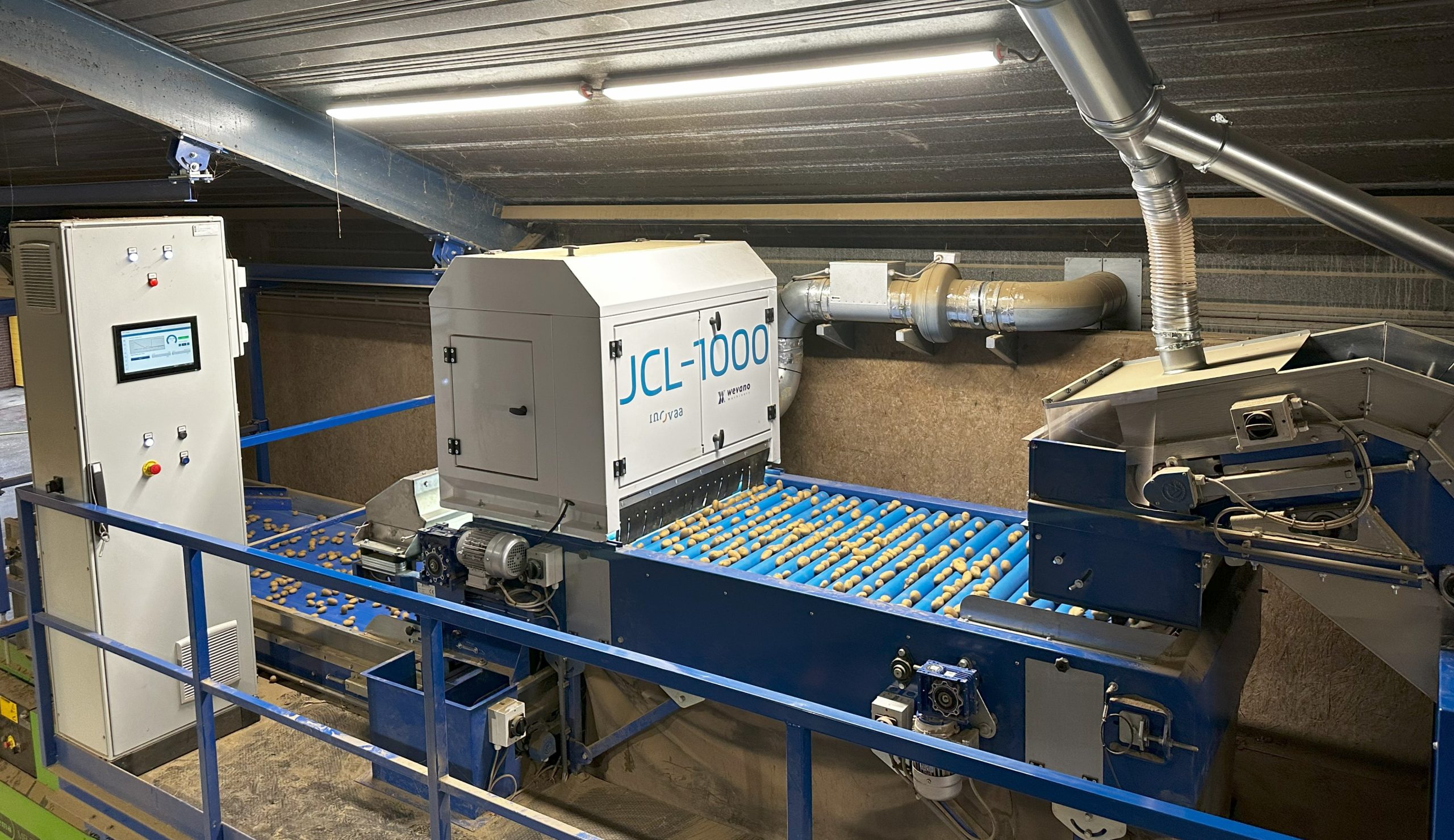

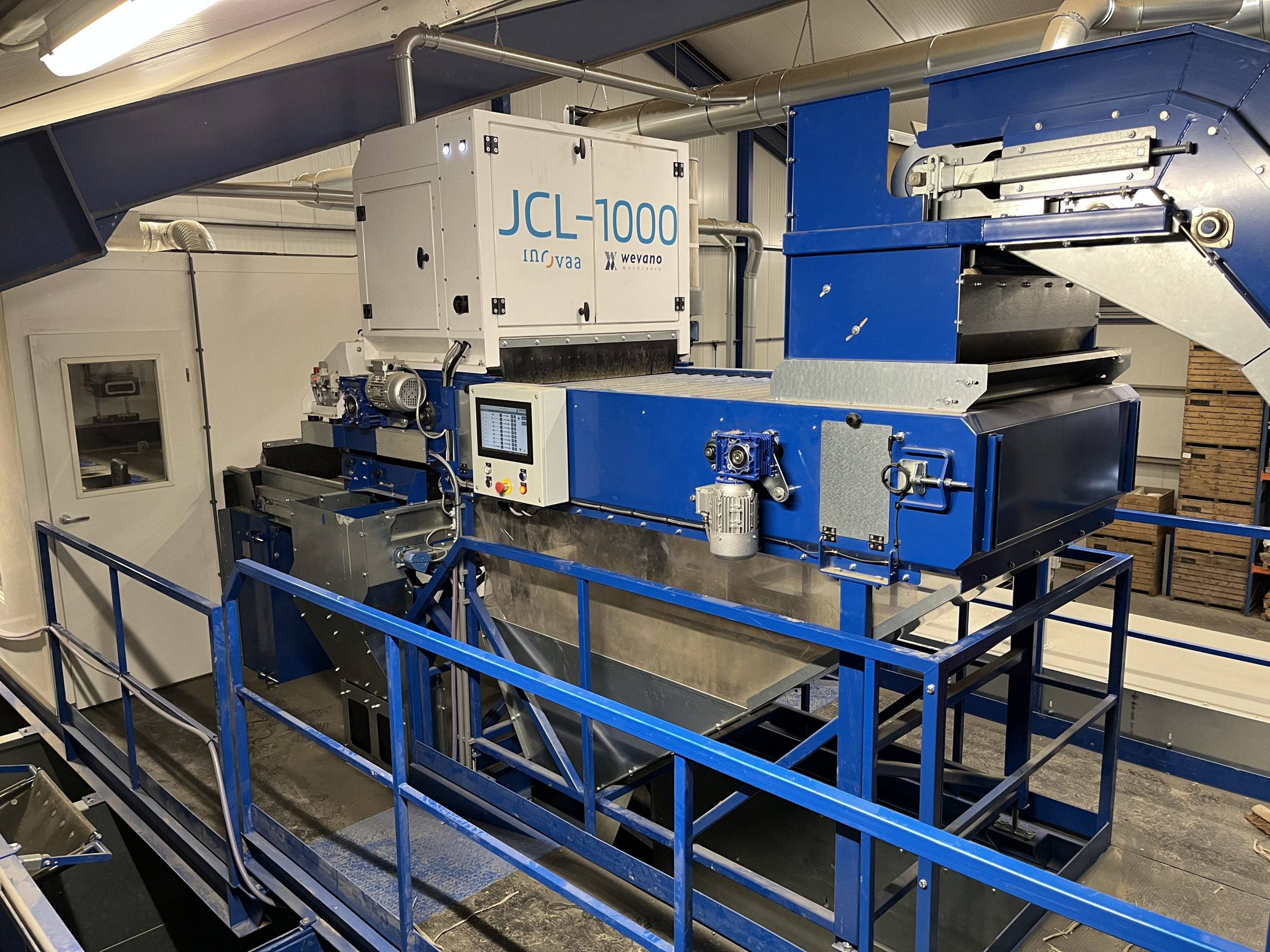

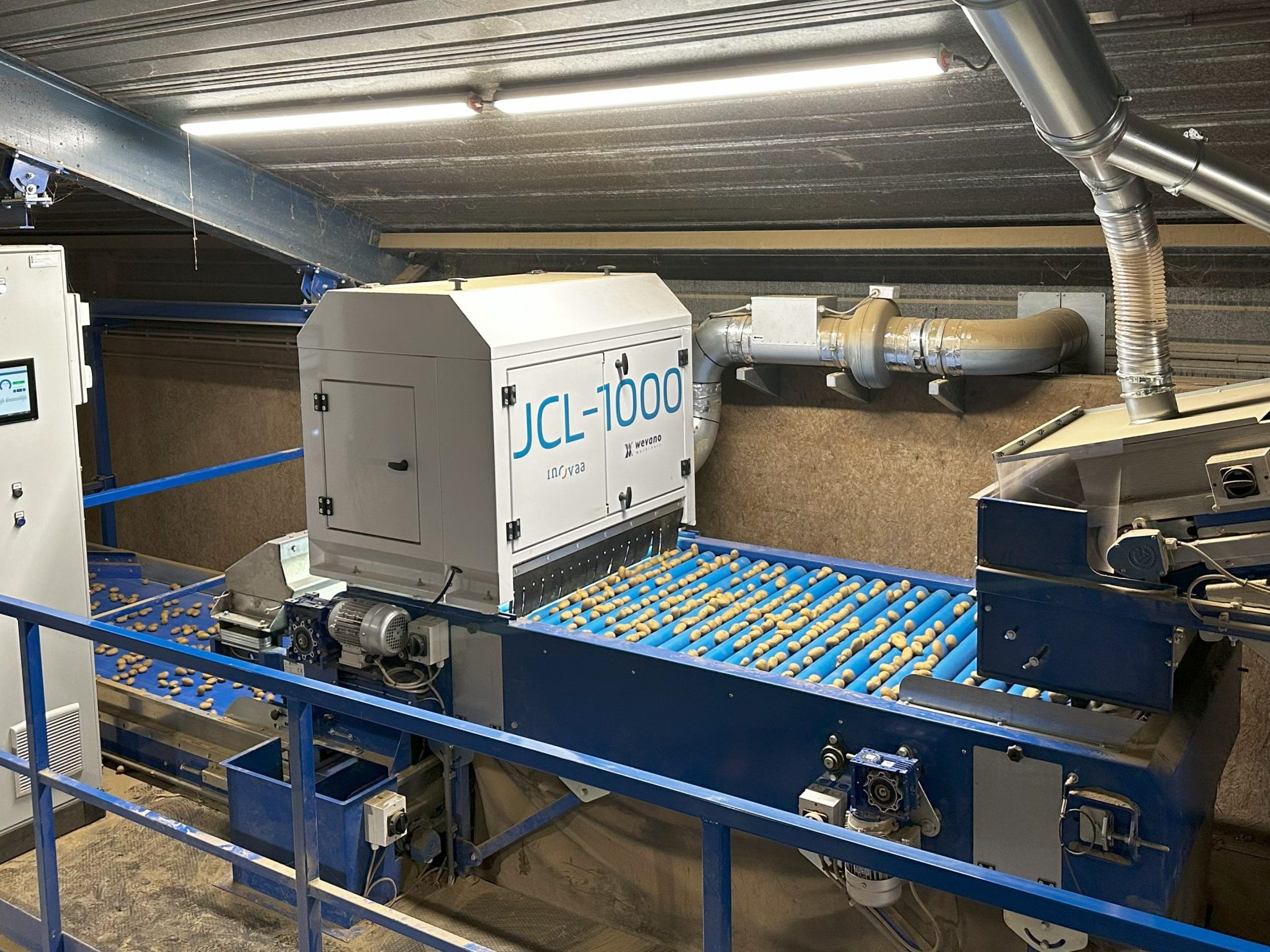

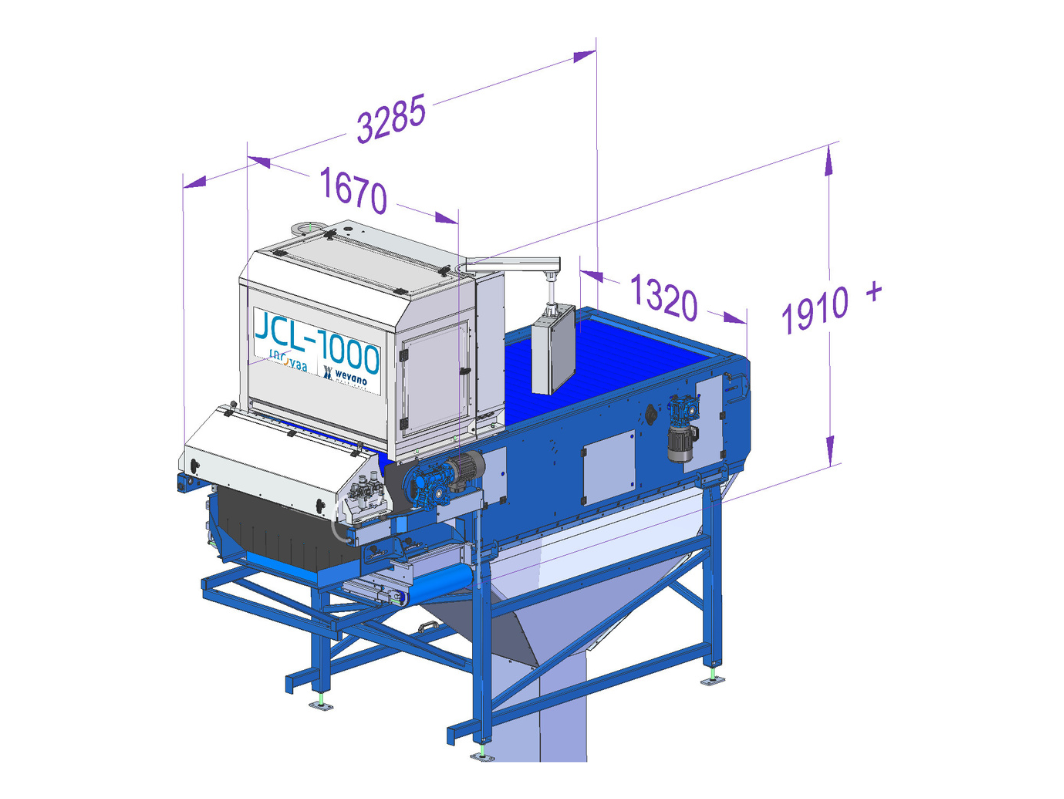

JCL-1000

The electronic quality sorter JCL-1000, is the result of a collaboration between Wevano and Inovaa.

The JCL-1000 is ideally positioned in front of an inspection table. This immediately leads to a significant reduction in labor hours.

Thanks to the knowledge gained over the years with the U-Vision, the JCL is supported by an extensive and reliable data library.

  • Sorting capacity of up to 12 tons per hour, depending on the size and cleanliness of the batch.
  • Each potato is fully inspected from all sides. On average, 30–40 images are captured per item.
  • Reliable detection of defects, including:
    – growth cracks
    – rhizoctonia
    – rot
    – deformation
    – greening
    – scab
    – damage
    – etc.
  • The machine creates three precise product streams in a single pass, without significant drop in heights.
  • Separation of undersize or oversize is adjustable.
  • The fingers are correctly positioned before contact, preventing damage to the potatoes.

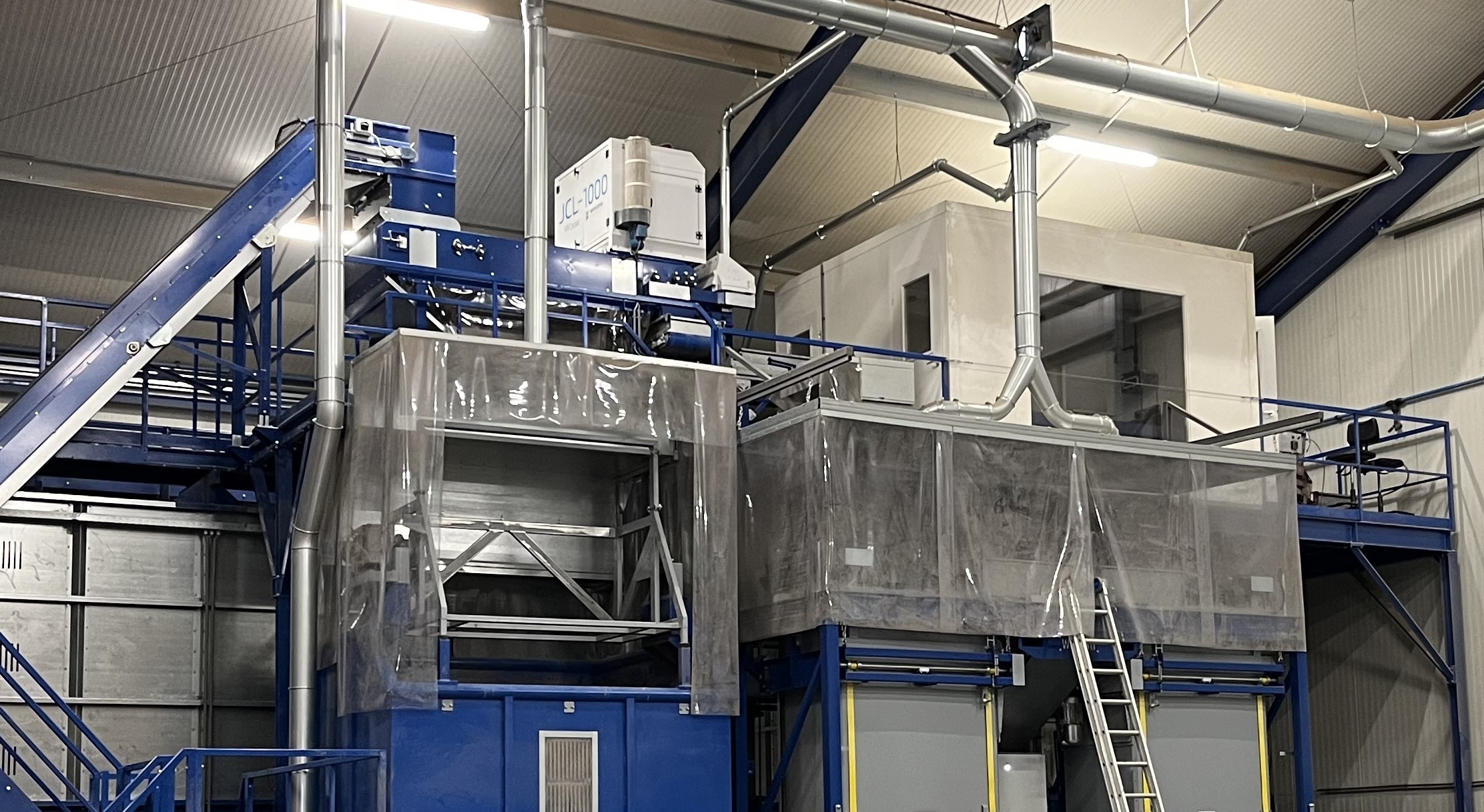

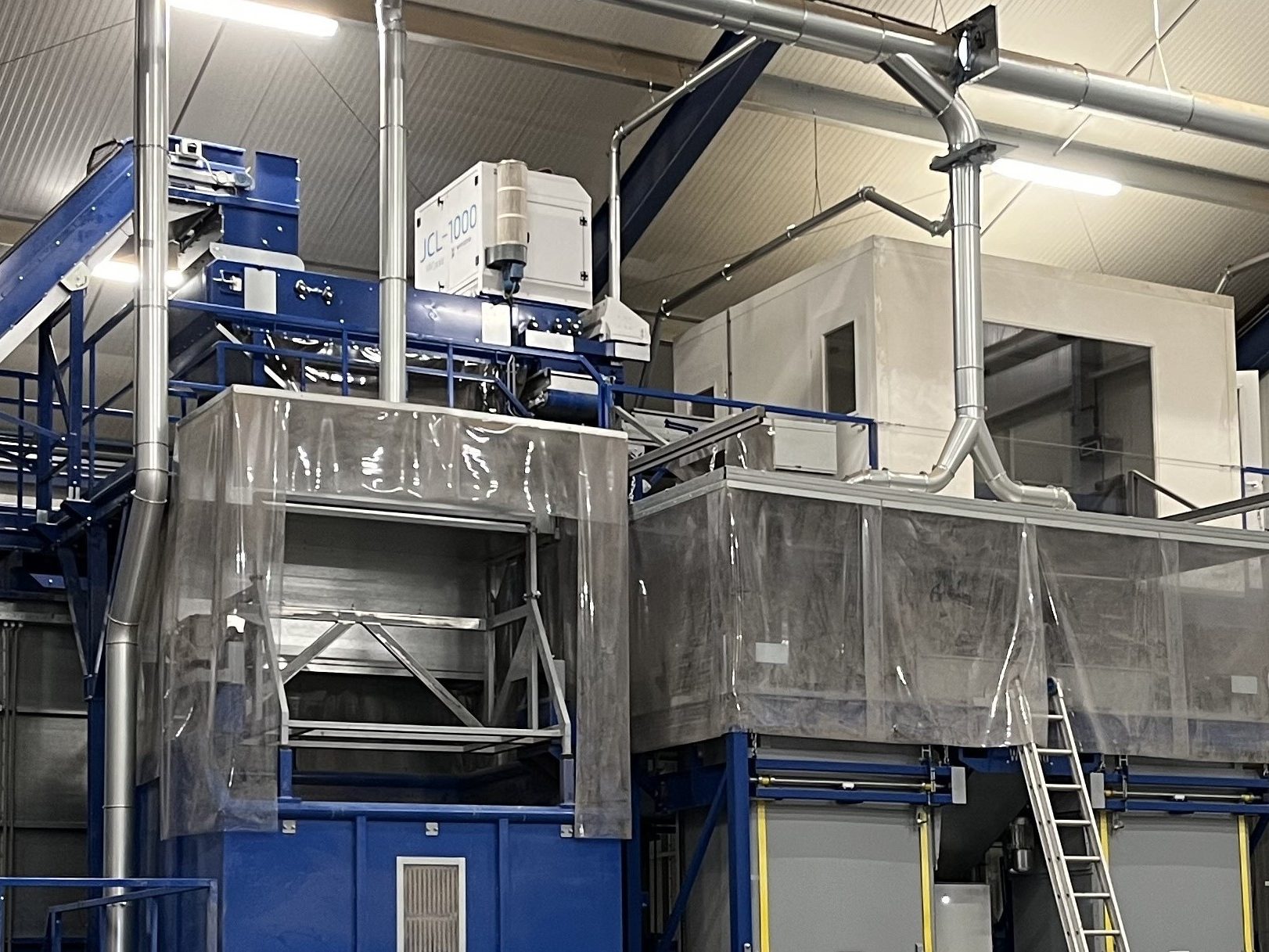

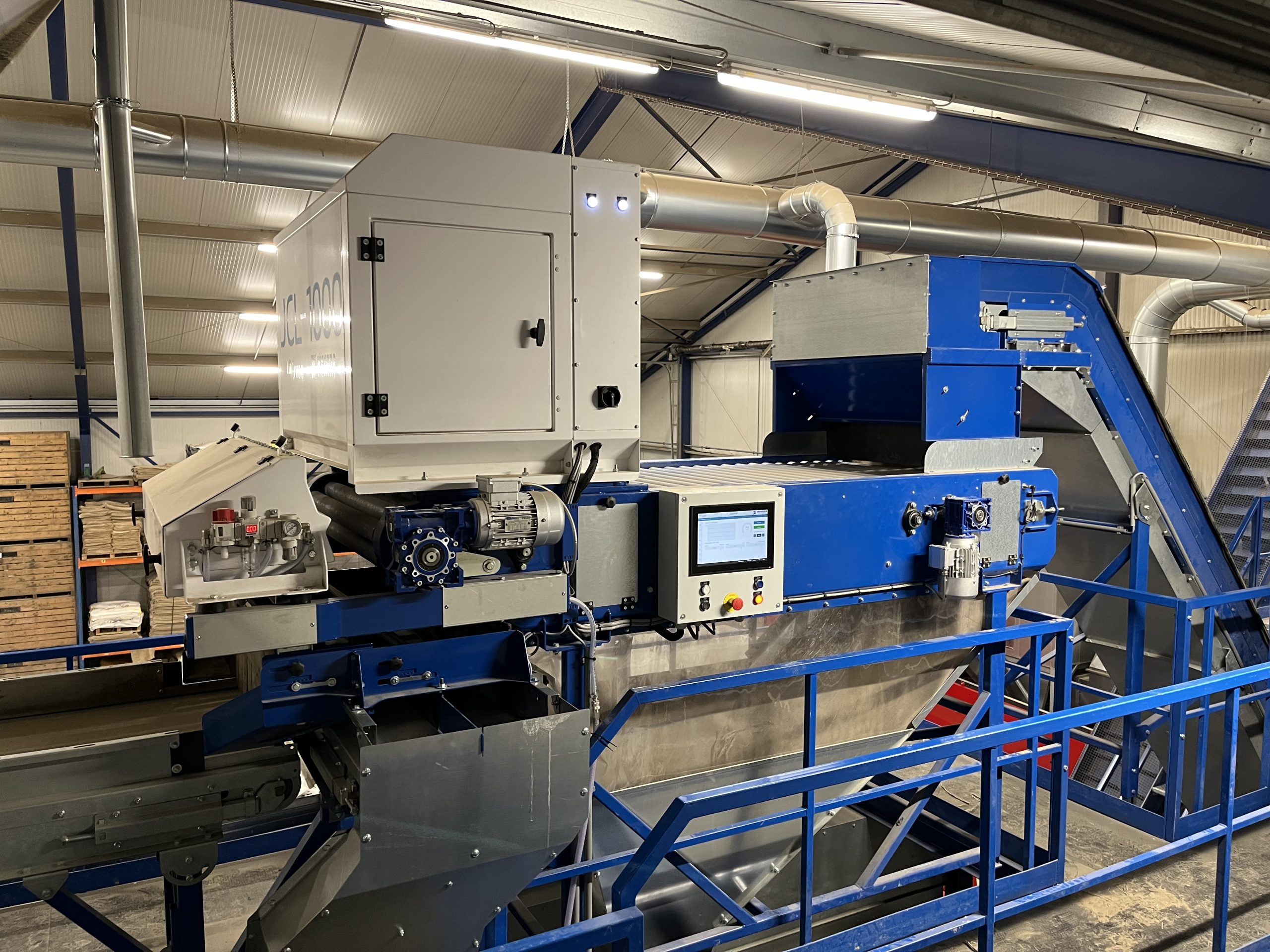

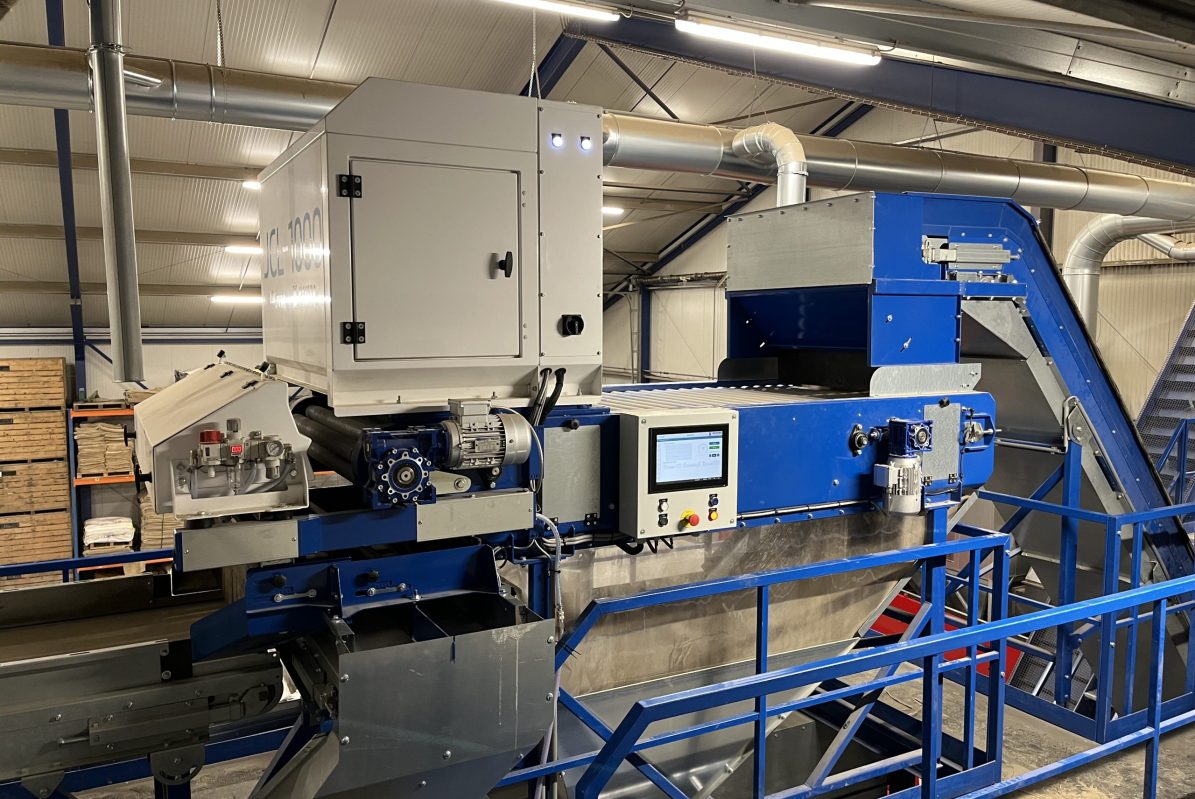

JCL Bennema in Lijn 2

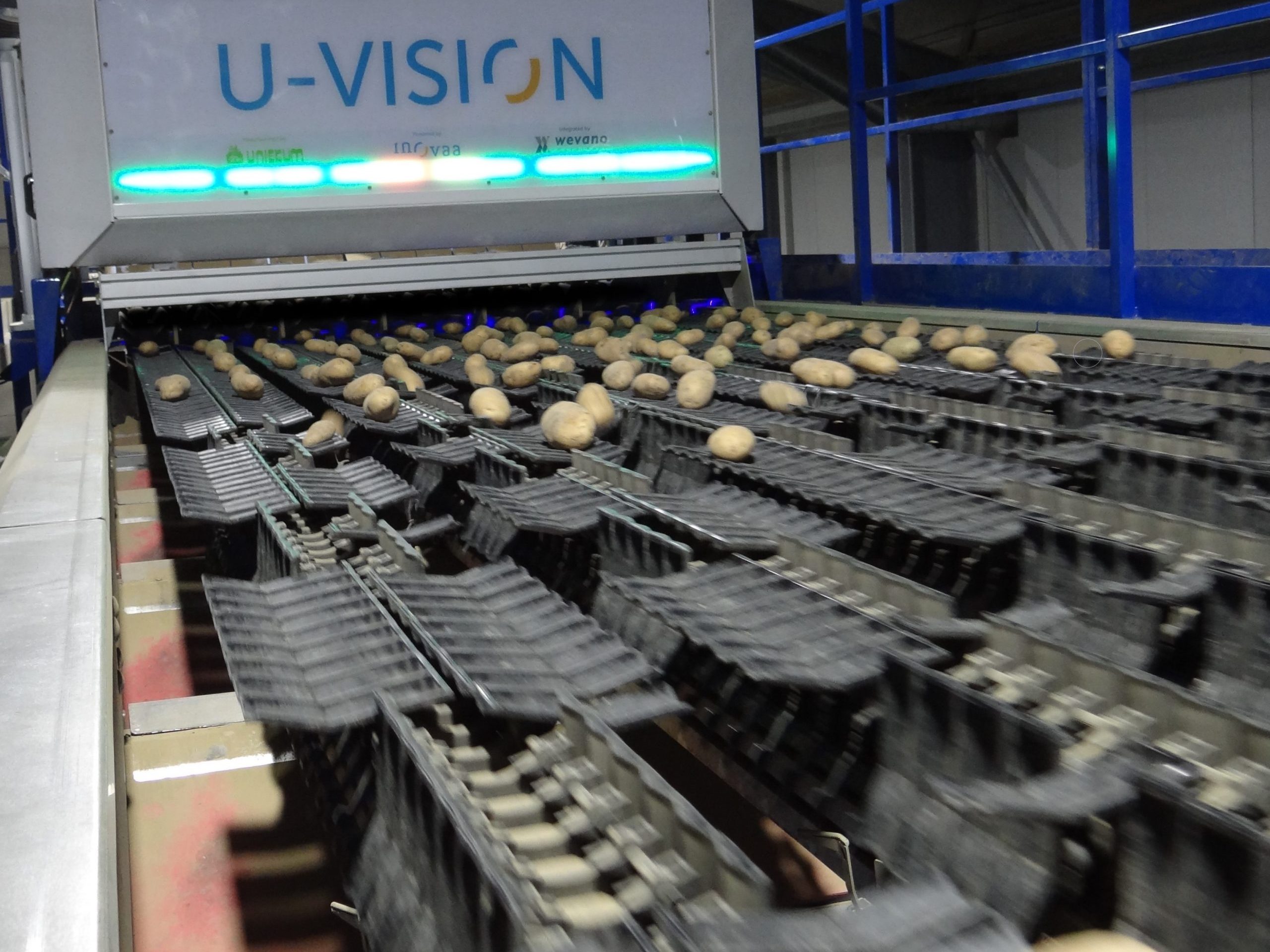

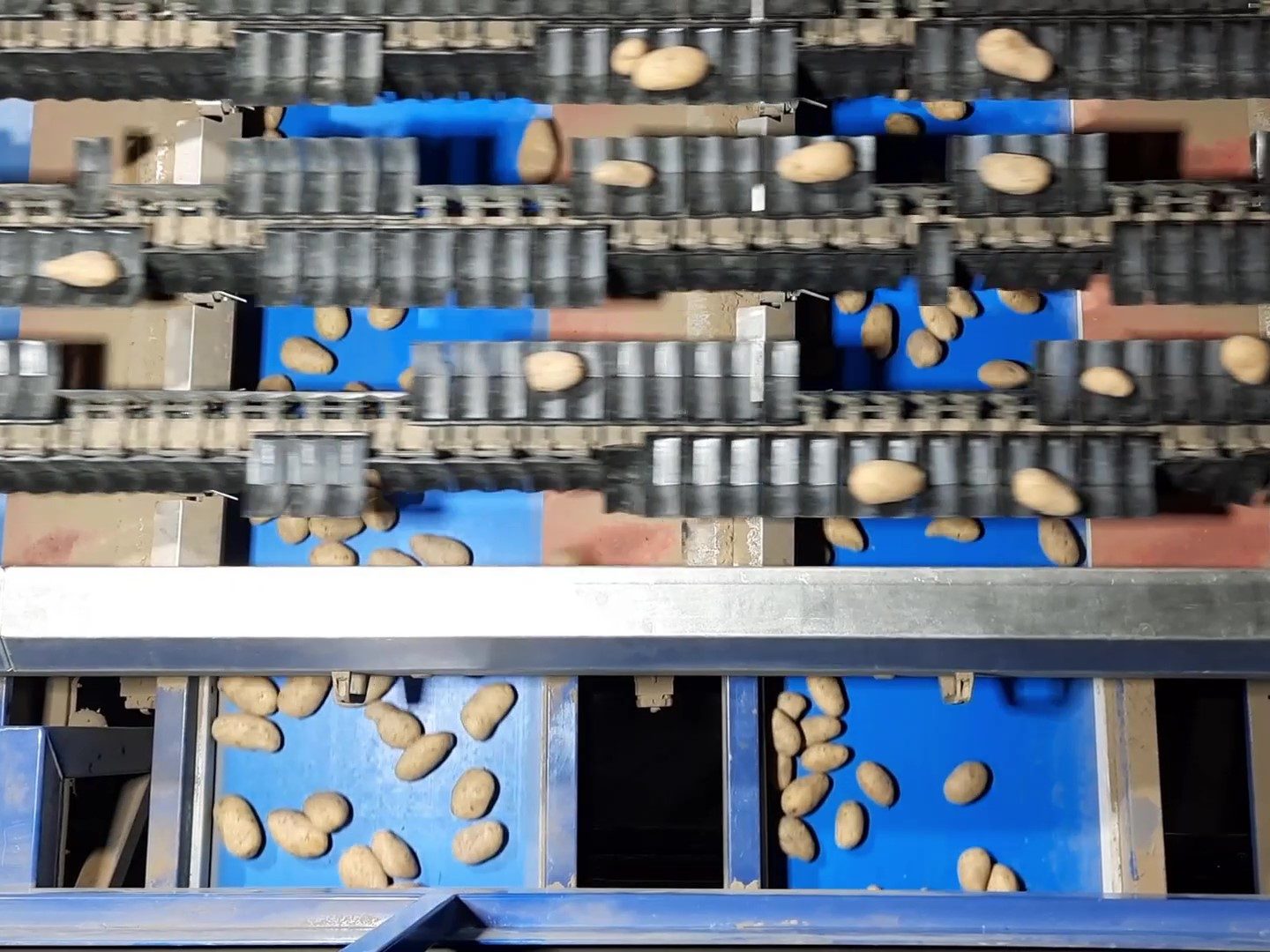

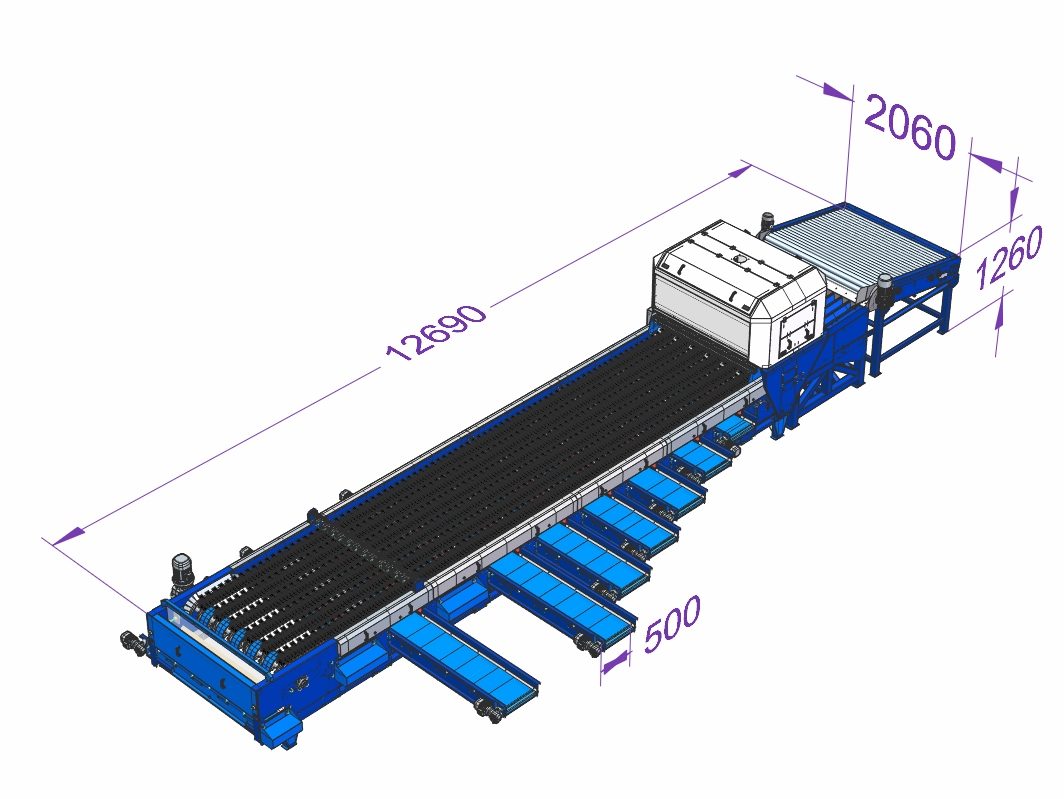

U-VISION

he electronic U-Vision sorting machine
is the result of a collaboration between
Wevano, Inovaa and Uniekum

  • Sort up to 11 tonnes per hour by quality and size
    – size adjustable to 0.5 mm
    – excellent clod recognition
  • Each potato is assessed from all angles
  • Reliable defect recognition:
    – growth cracks
    – rhizoctonia
    – rot
    – greening
    – scab
    – deformation
    – other damage
  • Minimal dust formation because compressed air is not required
  • Control U-Vision & processing line with 1 screen
  • Option: assessment oftrial harvests
